Setting the In-Memory Format of Map Entries

The first thing to keep in mind is that serialization of your data always happens. The goal of setting the in-memory format is to minimize the overhead of serialization by only performing the operation when necessary.

When data arrives at the Hazelcast cluster for loading into a map, it is in binary (serialized) format - a requirement for transmission over a network. By default, Hazelcast stores those map entries as-is, in binary (serialized) format in on-heap memory.

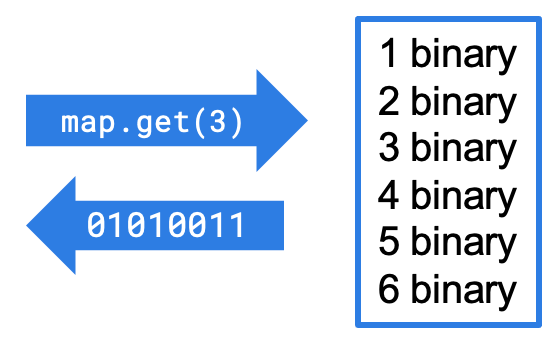

If the majority of your cluster operations are reads (get) and writes (put), leaving the data in BINARY format is most efficient. In a put operation, the application performing the put serializes the data for transmission over the network. The cluster member simply writes the received data to the map without any format changes. In a get operation, the cluster member returns a binary copy of the requested map entry. The application performs the necessary deserialization on the returned data.

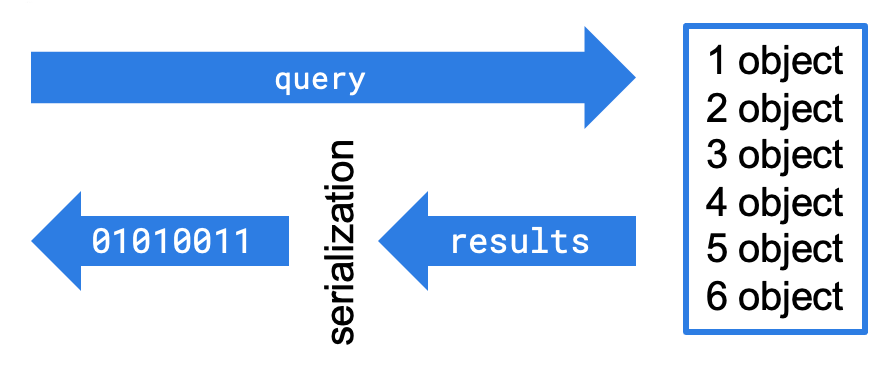

However, if the majority of your cluster operations are queries, deserialization overhead becomes a concern. Queries have to run against objects, not binary data. By storing your frequently-queried data in OBJECT format, you incur the deserialization overhead when the data is added to the map. The data is stored in the correct format for queries. Query results are serialized before being returned to the cluster member coordinating the query (see How Distributed Query Works for a complete description of how Hazelcast handles queries.) If you stored frequently-queried maps in binary format, the entire map would need to be deserialized within the cluster before the query could run.

You should also use the OBJECT format if you are performing processing within the cluster directly on the map data (e.g. using an entry processor).

To configure how the cluster will store map data, set the in-memory-format element in the configuration:

Enterprise Edition

Hazelcast instances run within Java Virtual Machines (JVMs). JVMs use a process called Garbage Collection (GC) to manage memory utilization. GC is an interrupting process, and the larger the heap, the longer GC takes to complete. This interruption could cause your application to pause for tens of seconds (even minutes for really large heaps), badly affecting your application performance and response times. To avoid the GC delay, most JVMs are implemented with a maximum size of 4 to 8 GB.

The Hazelcast High-Density (HD) Memory Store overcomes the limitation of garbage collection, allowing you to deploy fewer cluster members with much larger memory configurations. Instead of relying on the Java garbage collection, Hazelcast stores the data off-heap and performs the necessary memory management and cleanup. Data stored using HDMS is kept in binary format.

You can configure a map to use HD memory store by setting the in-memory format to NATIVE. The following snippet is the declarative configuration example.

Keep in mind that you should have already enabled HD memory usage for your cluster. See the Configuring High-Density Memory Store section.

Note that NATIVE memory stores data in binary format. Maps stored in the HD memory store have to be deserialized before they can be queried. A best practice is to use on-heap memory for maps that will be frequently queried when possible.
