Update cluster configuration at runtime

You can add YAML or XML configuration blocks to your running cluster, without needing to restart it.

Go to Administration > Update Config.

Supported configuration

Management Center allows you to add configuration for the following at runtime.

tip

A configuration block is one that is a direct child of hazelcast.

• New data structure blocks

  note

  You cannot add map indexes using the Update Config page. To add map indexes, use the CREATE INDEX statement in the SQL browser.

• New WAN Replication blocks

• New or updated Enterprise licenses

For examples of YAML and XML configuration, see the Hazelcast GitHub repository:

• XML example
• YAML example

Submit new configuration to the cluster

You can add configuration blocks to the text field or you can upload a YAML or XML configuration file.

note

If you submit an existing configuration block, other than license, that already exists, the cluster ignores that configuration block and applies only the new ones.

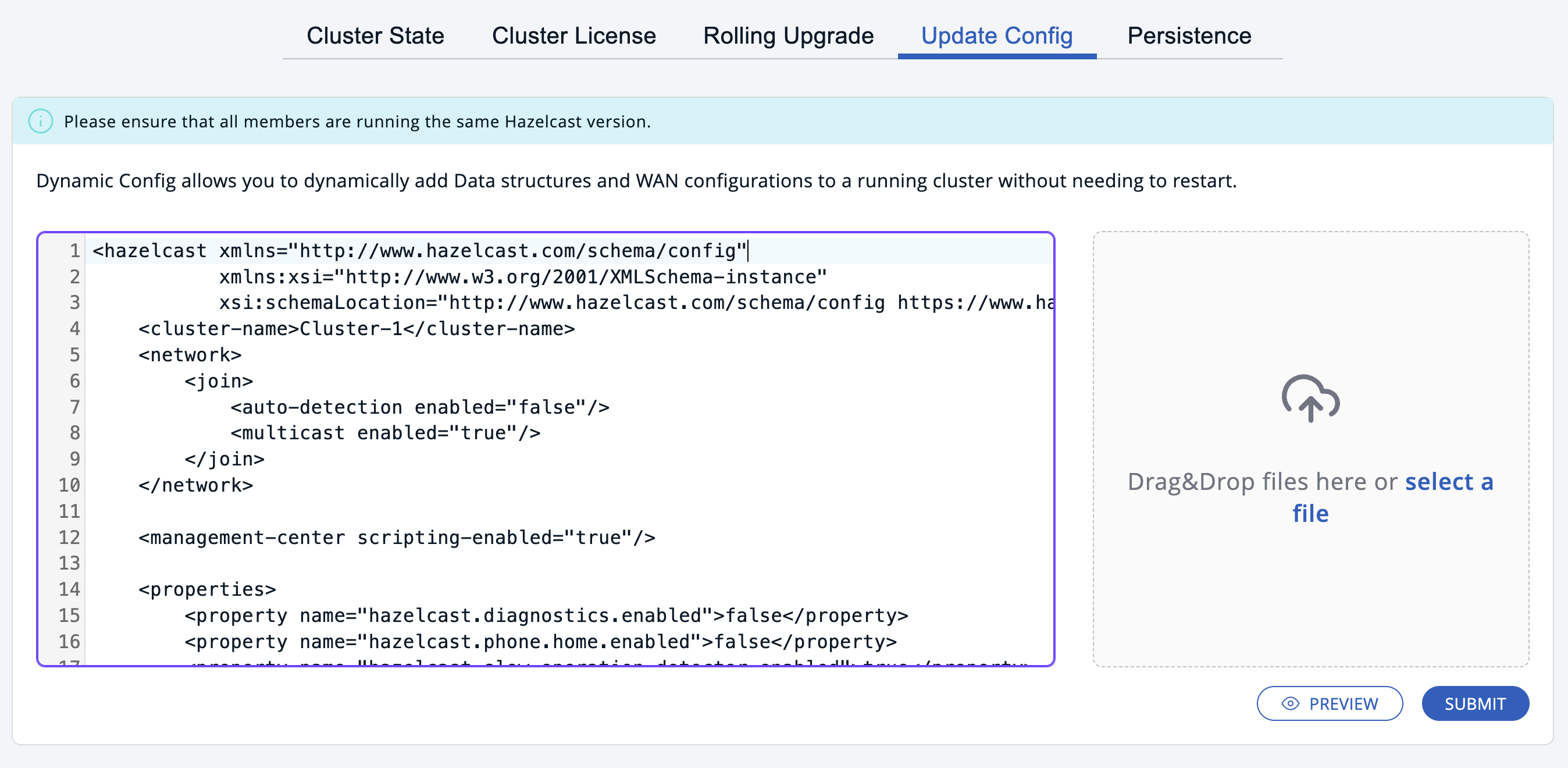

Update Config page

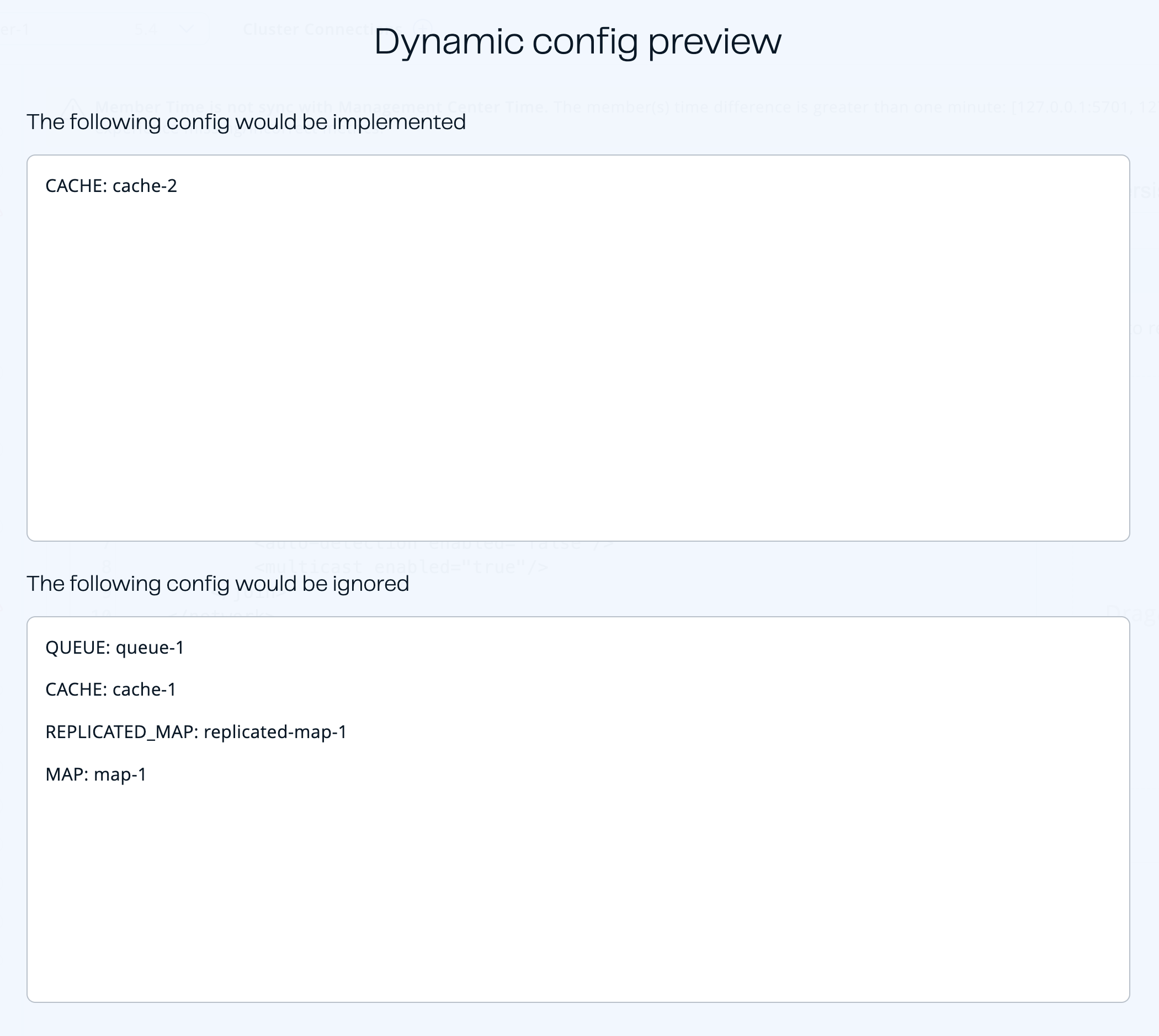

To check which configuration blocks will be applied, click the Preview button.

Preview

To apply the new configuration, click the Submit button.

When the configuration is submitted to the cluster, the cluster sends back one of the following results:

Status	Description
Started	Management Center successfully uploaded the configuration to the cluster.
In Progress	Management Center is uploading the configuration to the cluster. This is an intermediate result for large configuration blocks. You may not see this status if you submit small configuration blocks.
Failed	Some or all configuration blocks were not applied to the cluster. Possible errors: PARSING_FAILURE, SCHEMA_VALIDATION_FAILURE, GENERIC_FAILURE, INVALID_LICENSE
Finished	The configuration was successfully applied to the cluster.

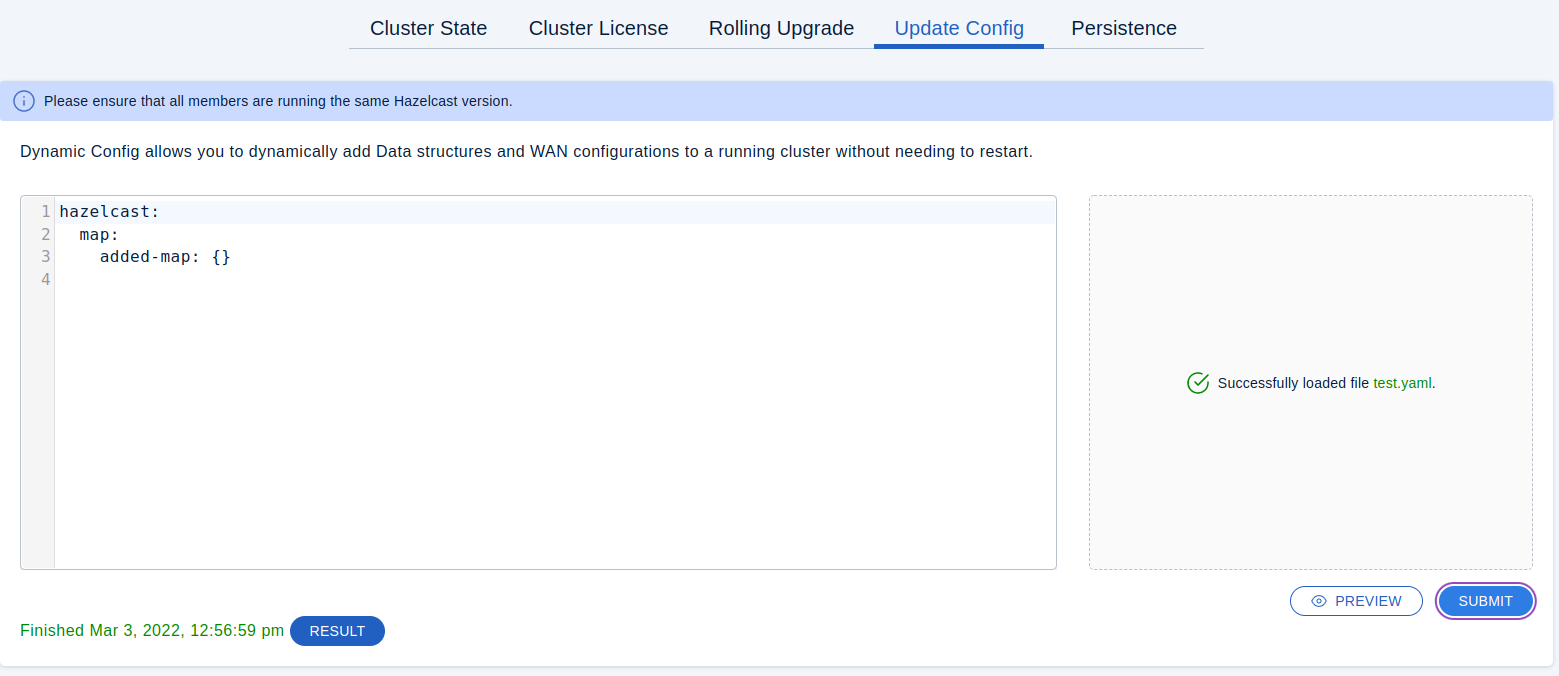

Success result

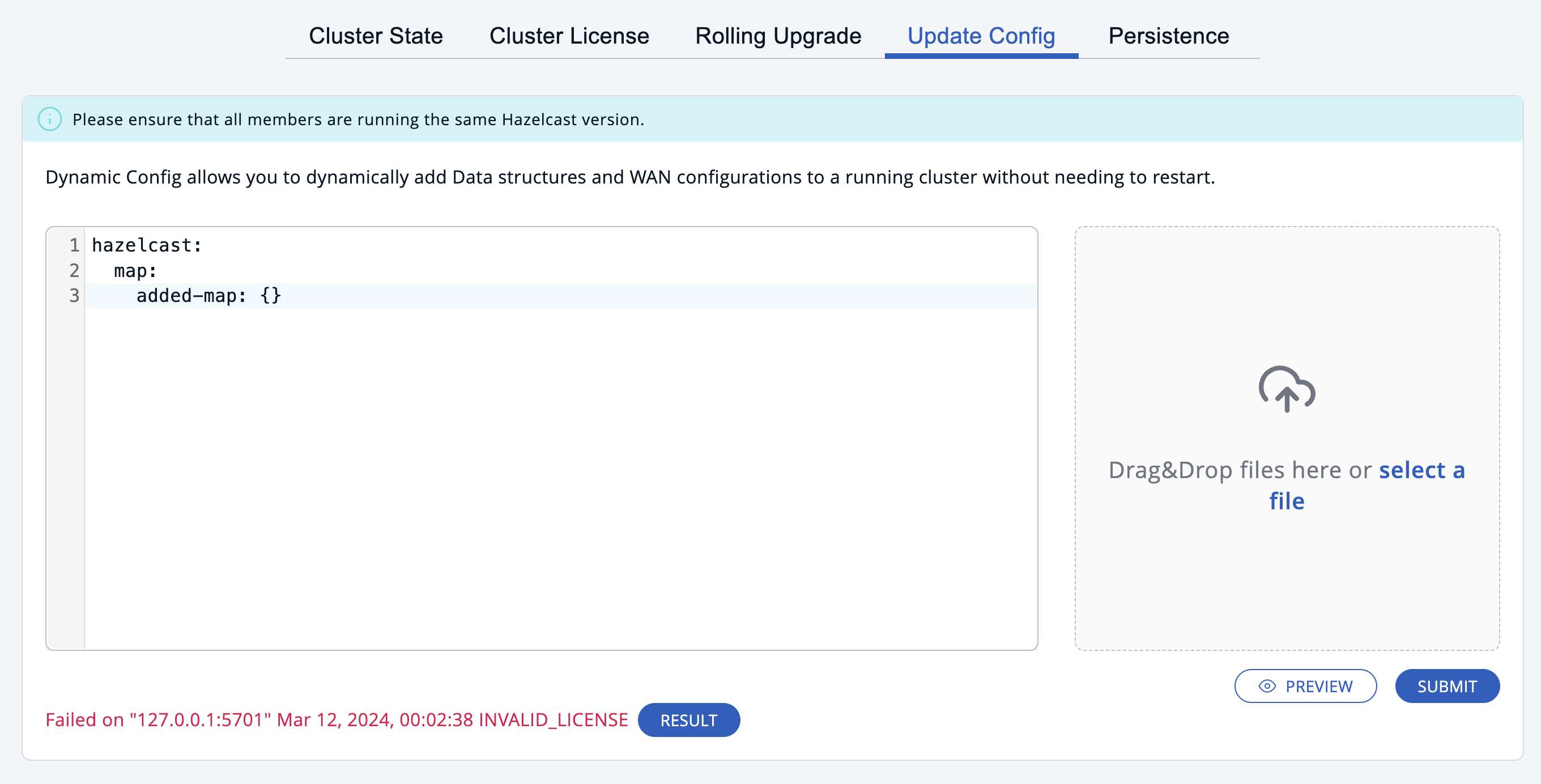

Failure result

To view the applied changes or errors, click the Result button.

Troubleshooting

Use this section to find suggestions for resolving errors that may occur with dynamic configuration.

Failed results

Configuration updates are not atomic. For example if you submit a new configuration block for a map and a queue, the map configuration block may be successfully applied, but the queue configuration block may fail. In this case the map configuration block is not reverted, but you will see a Failed result.

Click on the Results button to see which configuration blocks were applied and which were ignored.

To apply the configuration blocks that failed, submit the same configuration blocks.

note

If you submit an existing configuration block, other than license, that already exists, the cluster ignores that configuration block and applies only the new ones.

Server request error

If you see the following error after submitting a configuration, make sure that you are submitting valid XML or YAML:

Server request error: An exception occurred: expected type: JSONObject, found: String.
